Gauss Meter
INTRODUCTION
Carl Friederich Gauss invented first measuring devices namely the magnetometer or Gauss meter in 1833 that is capable of measuring the direction & strength of a magnetic field. He also invented a system of units to determine magnetism. So, the current unit of magnetic induction or magnetic flux density in the CGS system is called the gauss whereas, in the Sl measurement system, the magnetic flux basic unit is the tesla (1 tesla = 10,000 Gauss).
GAUSS METER PRINCIPLE AND WORKING
Hall Effect is a principle method where a transverse electric field can be developed within a solid material when the material is located in a magnetic field that carries an electric current which is perpendicular to the magnetic field. Then the voltage can be measured at the right angle to the existing path. So this method of measuring voltage because of magnetic effect is called the Hall Effect.
The most essential part of a gauss meter is the Hall probe. This probe is flat and measures transverse magnetic fields. Transverse Probes can be used for measuring the magnetic fields, within open spaces like small gaps in magnets otherwise for ferromagnetic objects or simple magnets. Generally, probes are highly sensitive, particularly when they are used to gauge small magnetic fields.

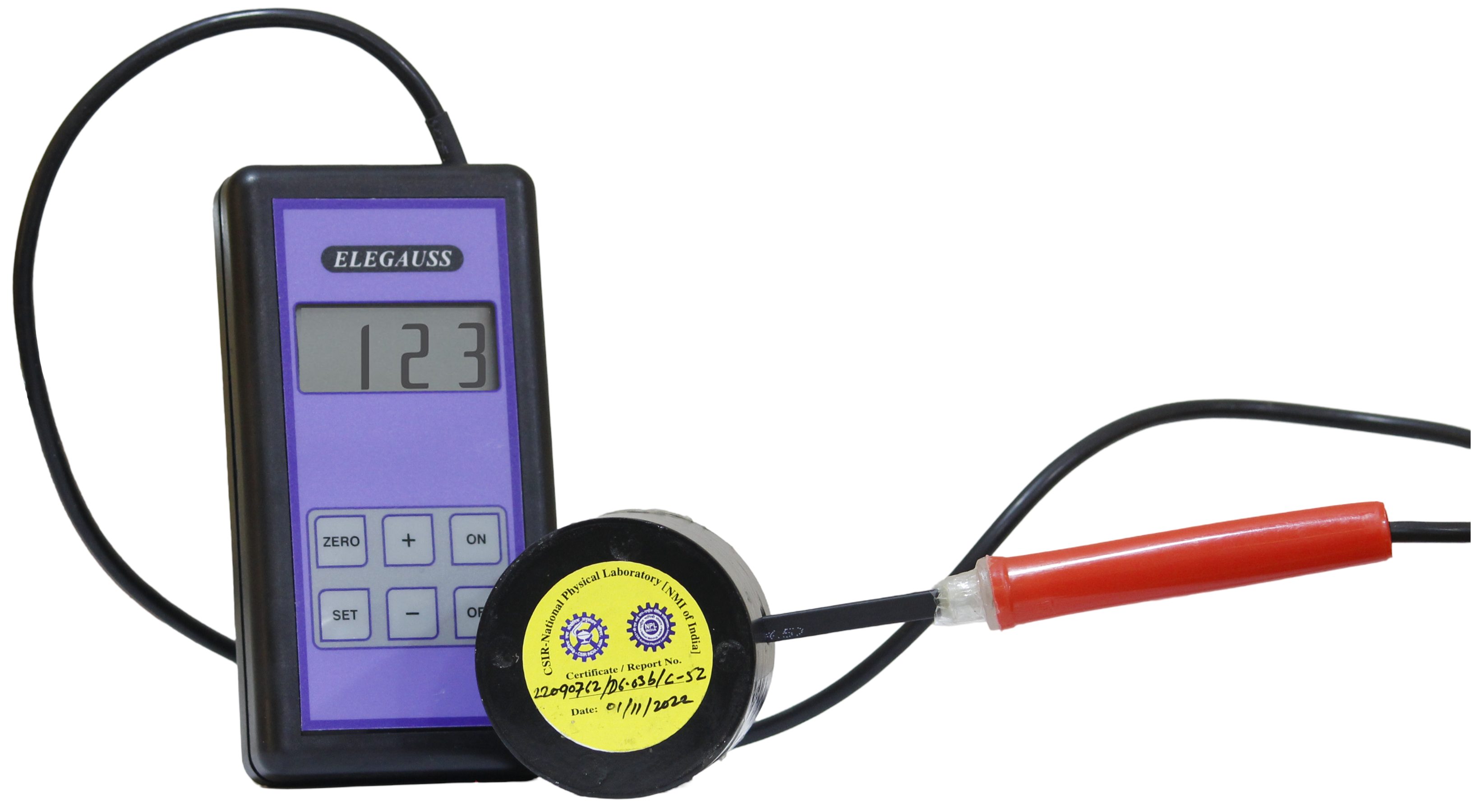

The Gauss meter are mainly used to compute the magnetization of a magnetic material's like a ferromagnet or otherwise it can be stated as it is used to measure the direction & strength of the magnetic field at a specific point in space. A gauss meter includes a gauss probe, the meter & a cable to fix them. This meter simply works because of the Hall Effect. This meter is also used to measure small magnetic fields.
Features

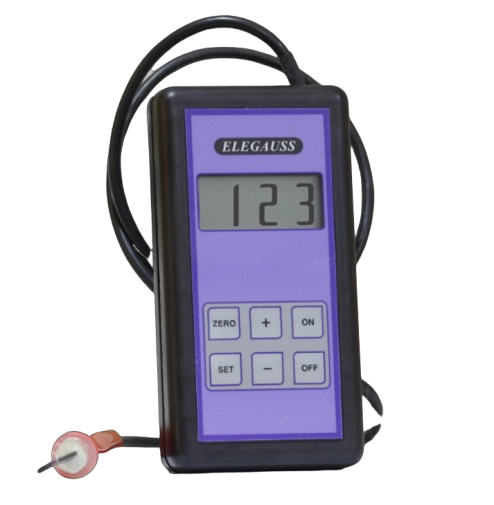

- 1. Gauge Versatility: Instrument is Handheld, light weighted, having big clear visual display on easy to carry ABS case with attractive tactile Membrane keypad.
- 2. Principle Non-Destructive Technique: Gauss Meter utilizes non-destructive testing methods, allowing measurement of magnetic field without damaging the substrate. This saves both time and resources, making them ideal for various industries.

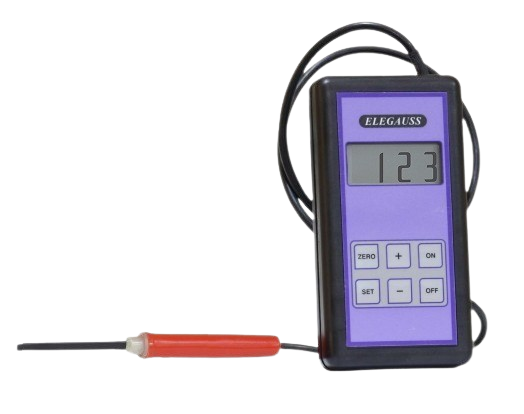

- 3. Probe Sensor: Well-balanced Probe Sensor, with advanced sensor technology and precise calibration offer exceptional reading accuracy, speed and repeatability. Probe sensor is compact dimensions with Flat thickness within 2mm and 5mm wid.
- 4. North/South Direction Indicator
- 5. Gauss/Tesla Converter
- 6. Peak Hold Function
APPLICATIONS
DC magnetic field
N/S polarity of DC magnets.
Residual magnetic field after processing of mechanical parts.
Intensity of magnetic field in magnetic application products.
Residual magnetic field generated from the stress after processing of stainless material.
Magnetic force of magnetizable material.
Natural magnetism of various steel products.
Magnetic field of motors and other home appliances.
Magnetic Field Intensity of Permanent Magnets.
Detecting the magnetic field of leakage generated from superconductive magnets.
To simultaneously measure the Temperature along with the magnetic intensity.

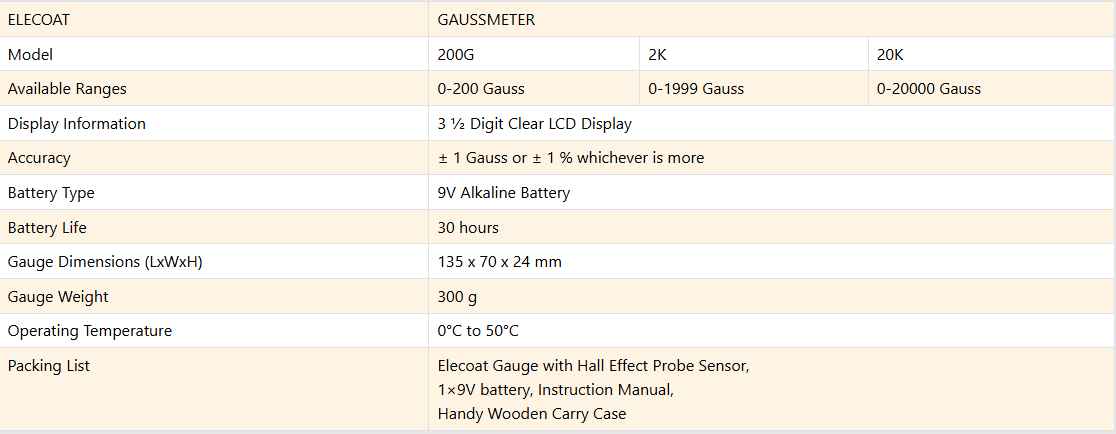

Technical Specifications
| ELECOAT | GAUSSMETER | ||
|---|---|---|---|
| Model | 200G | 2K | 20K |
| Available Ranges | 0-200 Gauss | 0-1999 Gauss | 0-20000 Gauss |
| Display Information | 3 ½ Digit Clear LCD Display | ||
| Accuracy | ± 1 Gauss or ± 1 % whichever is more | ||
| Battery Type | 9V Alkaline Battery | ||
| Battery Life | 30 hours | ||
| Gauge Dimensions (LxWxH) | 135 x 70 x 24 mm | ||
| Gauge Weight | 300 g | ||
| Operating Temperature | 0°C to 50°C | ||
| Packing List |
Elecoat Gauge with Hall Effect Probe Sensor, 1×9V battery, Instruction Manual, Handy Wooden Carry Case |
||
Distinctive Competence
- Instrument Designed by us are Indigenously Developed and Manufactured in India.
- Instruments are manufactured Using Quality Precision Components which makes them Accurate and Reliable.
- Instrument are Comparable to Finest similar Competitor in the World and works as Direct Import Substitute in India
- Instrument are serviced for at least 10 Yrs after Domestic and International sales.
- Instruments supplied are of Industrial ASTM/ISO Standards aligning them with Companies Standards
- Instrument Innovation is Our Passion and there are VALUABLE CUSTOMERS who makes IT POSSIBLE
