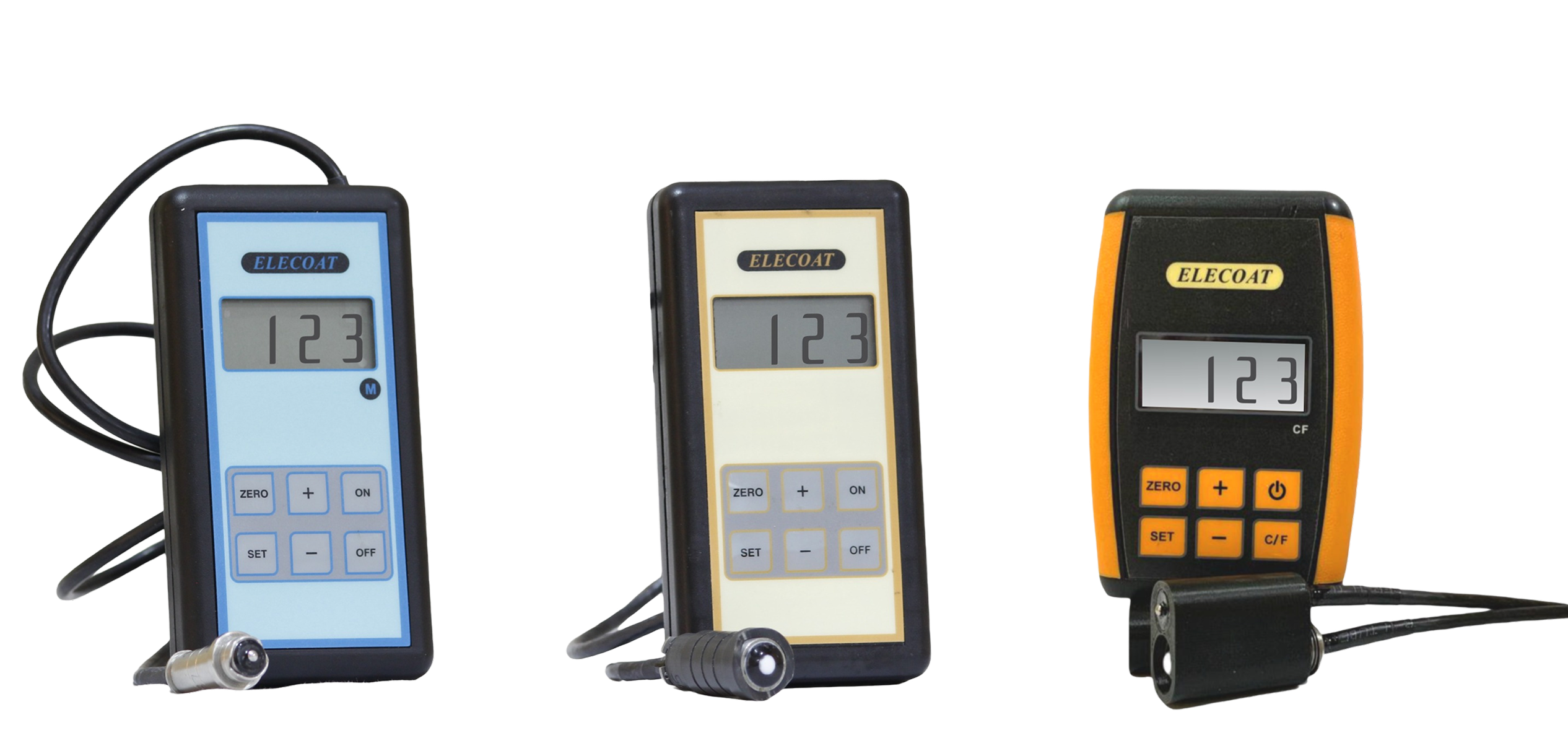

Coating Thickness Gauges
Introduction
Coatings are materials that are applied to a surface to improve its appearance, performance or durability. Coatings can be applied to a variety of materials, including metal, wood, plastic, and concrete etc.
There are many different types of coatings, most common types include Polyurethane coatings, Epoxy coatings, Alkyd coatings, Zinc coatings, Acrylic coatings etc.
Coating thickness gauges provides accurate measurement of the thickness of coatings over coated substrates. Coating thickness gauges play a very crucial role in quality control processes, enabling manufacturers to verify coating thickness during production to ensure consistency in product performance. Correct measurement of coating thickness using these gauges detects surface defects such as uneven coatings, inadequate coverage, or insufficient adhesion, and also ensure longevity and durability of the coated substrates by monitoring coating thickness over time, by detecting changes in thickness they help to classify areas prone to corrosion.
Coating thickness measurement core working principles: Magnetic Induction and Eddy Current.
Magnetic Induction: This principle involves using a probe with a magnetic field that interacts with the substrate and coating. The gauge measures the change in magnetic field strength, which correlates to the coating thickness.
Eddy Current: A probe emits an alternating current that creates a magnetic field. When the probe is placed near a conductive coating, eddy currents are induced. The gauge measures the changes in these currents, providing information about the coating thickness.
FEATURES
- Non-Destructive:
Coating thickness gauges utilize non-destructive testing methods, allowing measurement of coating thickness without damaging the coating and substrate. This saves both time and resources, making them ideal for various industries. - Gauge Versatility:
Instrument is Handheld, light weighted, having big clear visual display along with Sound audible buzzer on easy to carry ABS case with attractive tactile Membrane keypad. - Probe Sensor:
Well-balanced spring-loaded Probe Sensor with advanced sensor technology and precise calibration offer exceptional reading accuracy, speed and repeatability.
- Gauge Compatibility:
Compatible with various coating materials, including paint, powder, Plating, Anodising and more on Different Substrates. - Wide Applications:
From automotive manufacturing to aerospace, marine, and construction, coating thickness gauges find applications across a wide range of industries. Elecoat Gauge provides reliable thickness measurement solutions across various applications, ensuring compliance with specifications and delivering excellent quality control.

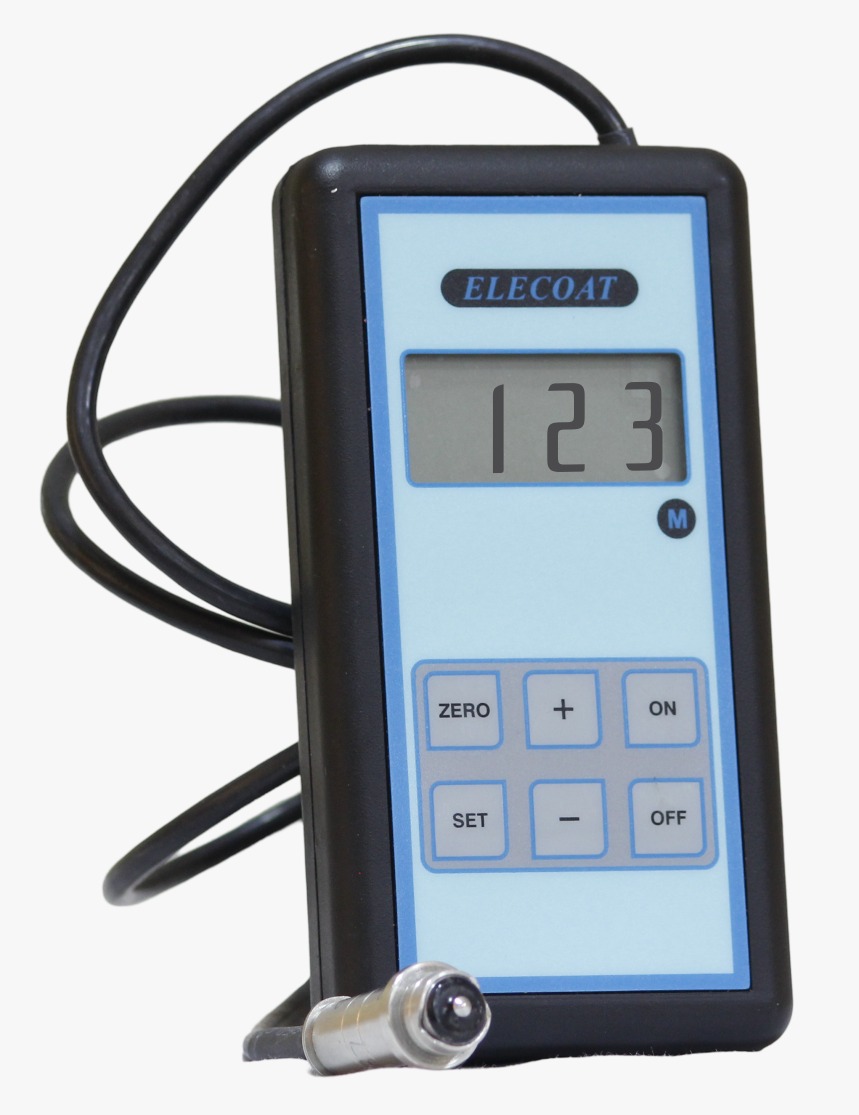

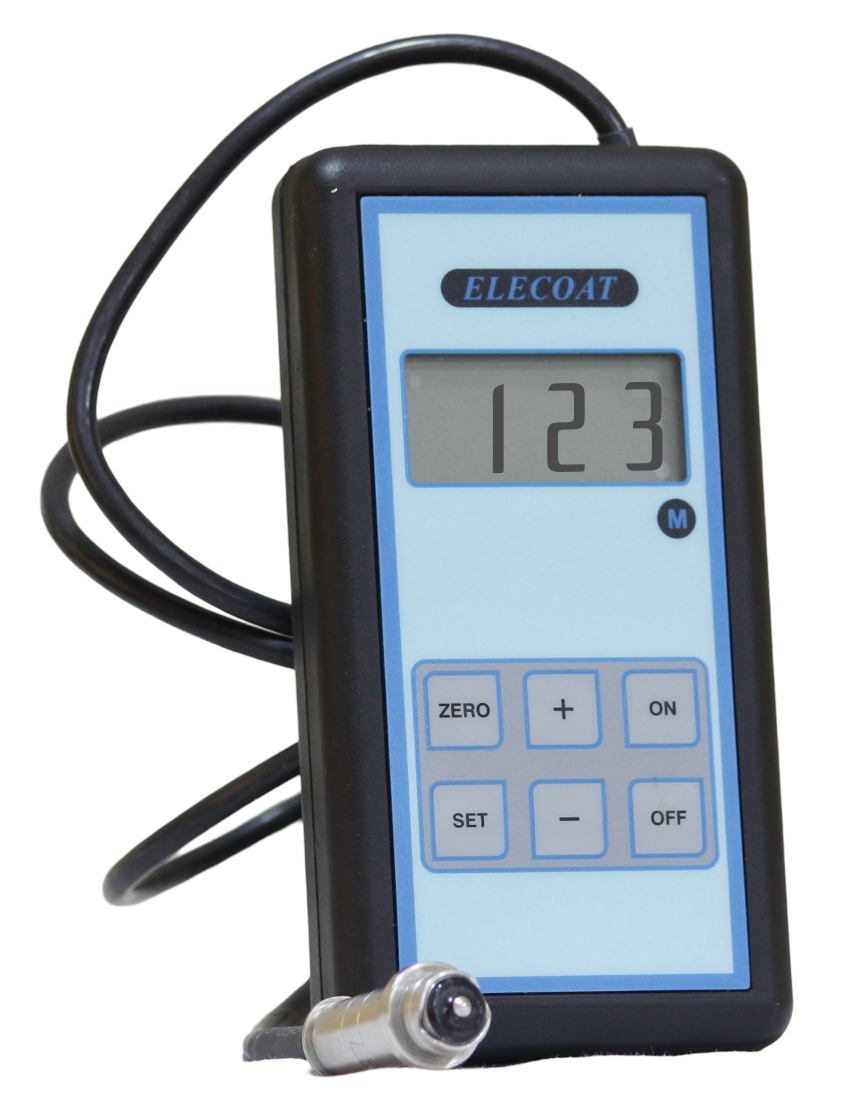

Elecoat-M: Measures Non-Magnetic Coatings on Magnetic Base
The Non-Magnetic coating may be of materials like:
- Plating: Gold, Copper, Zinc, Tin, Chromium, Hard Chromium, Lead etc.
- Coating: Paint, Resinous coating
- Lining: Resin, Rubber, Fibre Glass
- Film: Plastic, Copper foils
- Parkerising
- Metallising
- Insulation coating
The magnetic base may be of materials like: Iron, Nickel, Cobalt, Magnetic Stainless Steel etc.

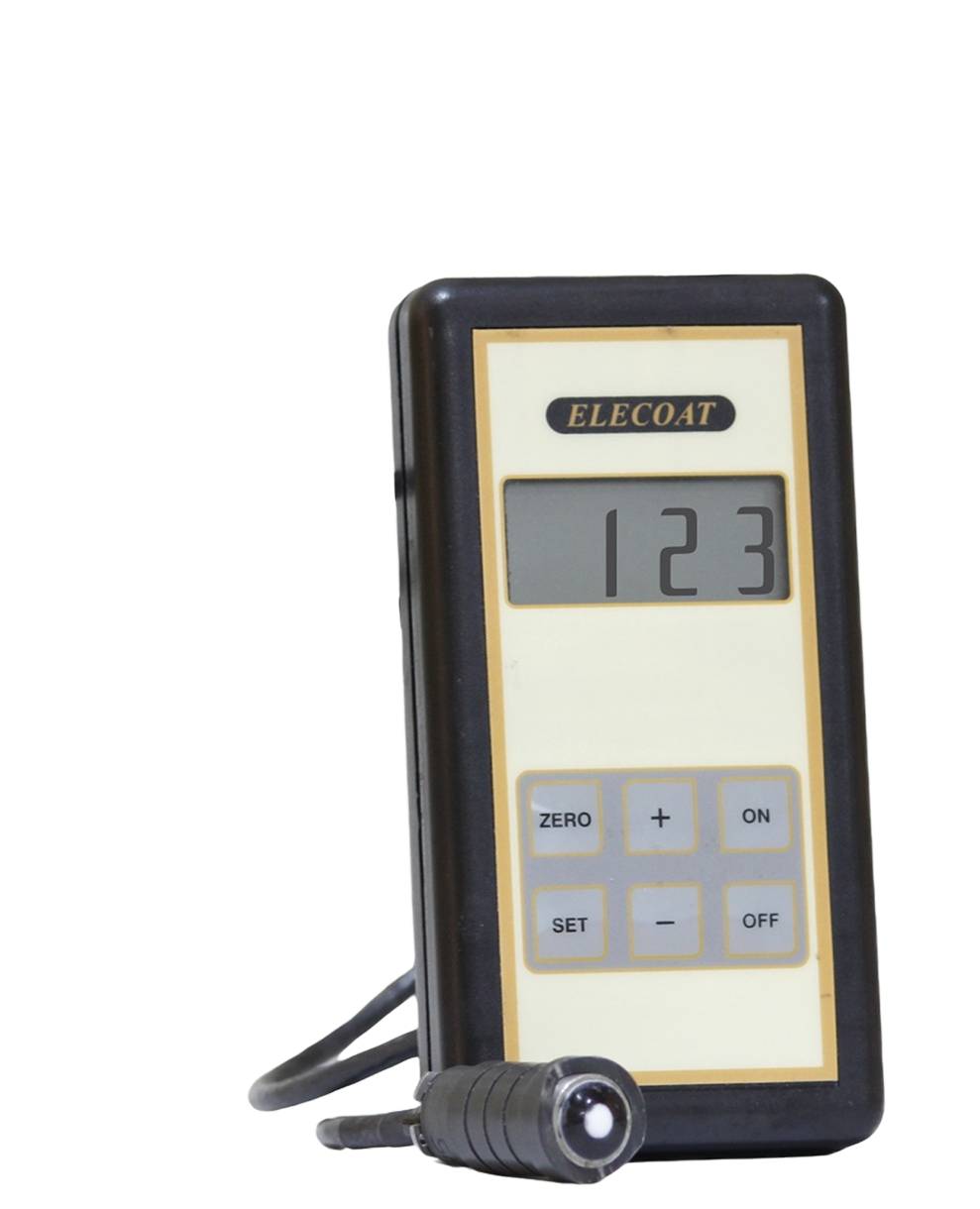

Elecoat-C: Measures Non-Conductive Coatings on Conductive Base
The Non-Conductive coating may be of materials like:
- Coating: Paint, Resinous coating
- Lining: Resin, Rubber, Fibre Glass
- Film: Plastic
- Anodizing
- Insulation coating
The conductive base may be of materials like: Aluminium, Copper, Brass, Non-Magnetic Stainless Steel

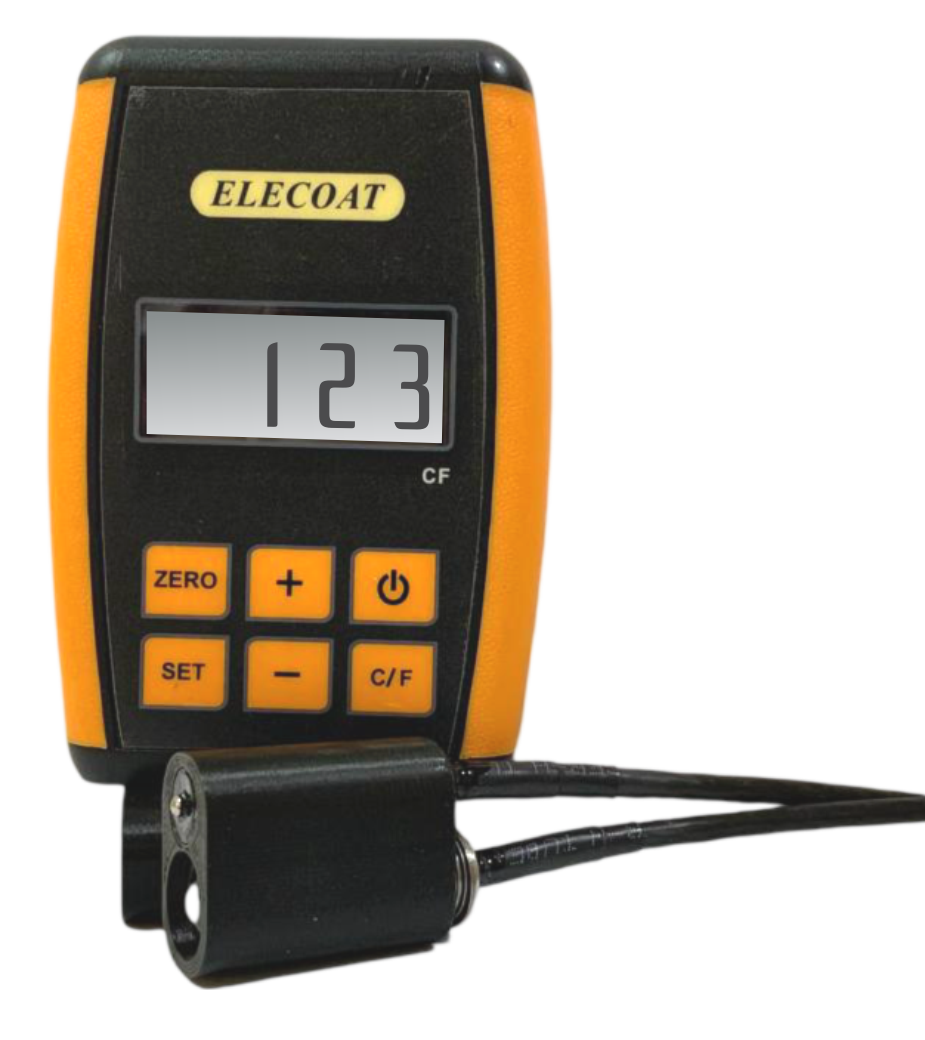

Elecoat-CF: Measures Non-Magnetic Coatings on Magnetic Base and/or Non-Conductive Coatings on Conductive Base
The Non-Magnetic coating may be of materials like:
- Plating: Gold, Copper, Zinc, Tin, Chromium, Hard Chromium, Lead etc.
- Coating: Paint, Resinous coating
- Lining: Resin, Rubber, Fibre Glass
- Film: Plastic, Copper foils
- Parkerising
- Metallising
- Insulation coating
The magnetic base may be of materials like: Iron, Nickel, Cobalt, Magnetic Stainless Steel etc.
The Non-Conductive coating may be of materials like:
- Coating: Paint, Resinous coating
- Lining: Resin, Rubber, Fibre Glass
- Film: Plastic
- Anodizing
- Insulation coating
The Conductive base may be of materials like:
- Aluminium
- Copper
- Copper, Brass
- Non-Magnetic Stainless Steel
Technical Specifications
| Range (Microns) | 0-1500, 2000, 3000, 6000, 12000# | |
|---|---|---|
| Resolution (Microns) | 0.1< 20 Microns, 1>20 Microns |
|
| Minimum Base Thickness | 0.3 MM | |
| Minimum Measuring Area | 6 MM | |
| Instrument Size (in mm) | 135*70*24 117*85*24 |
|
| Battery Supply Voltage / Type | 9 Volts (6F22) | |
| Working Temperature | 10 - 15 degree C | |
| Standard Probe Size | 18 MM * 14 MM (D*L) 40 MM * 25 MM# (D*L) |
|

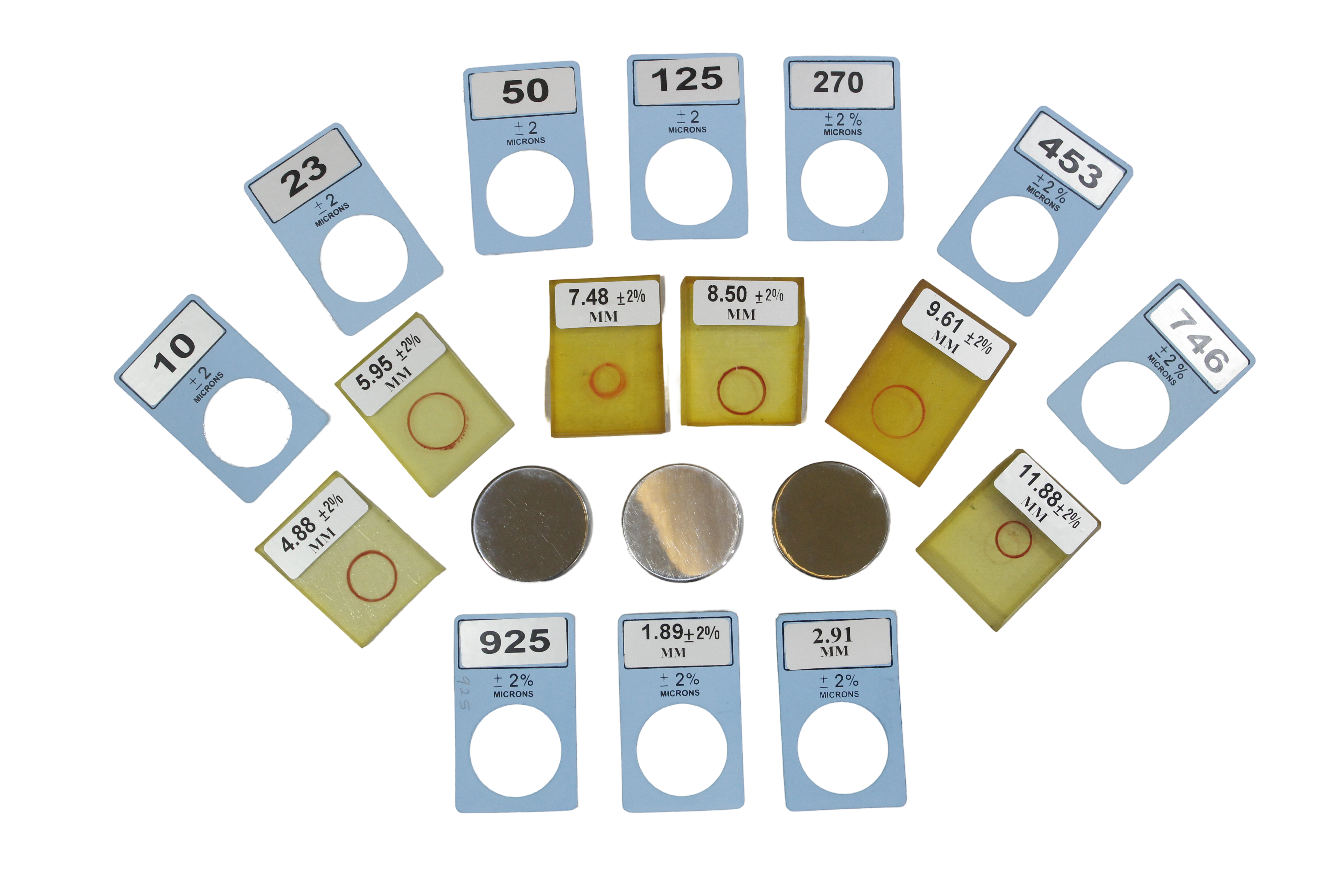

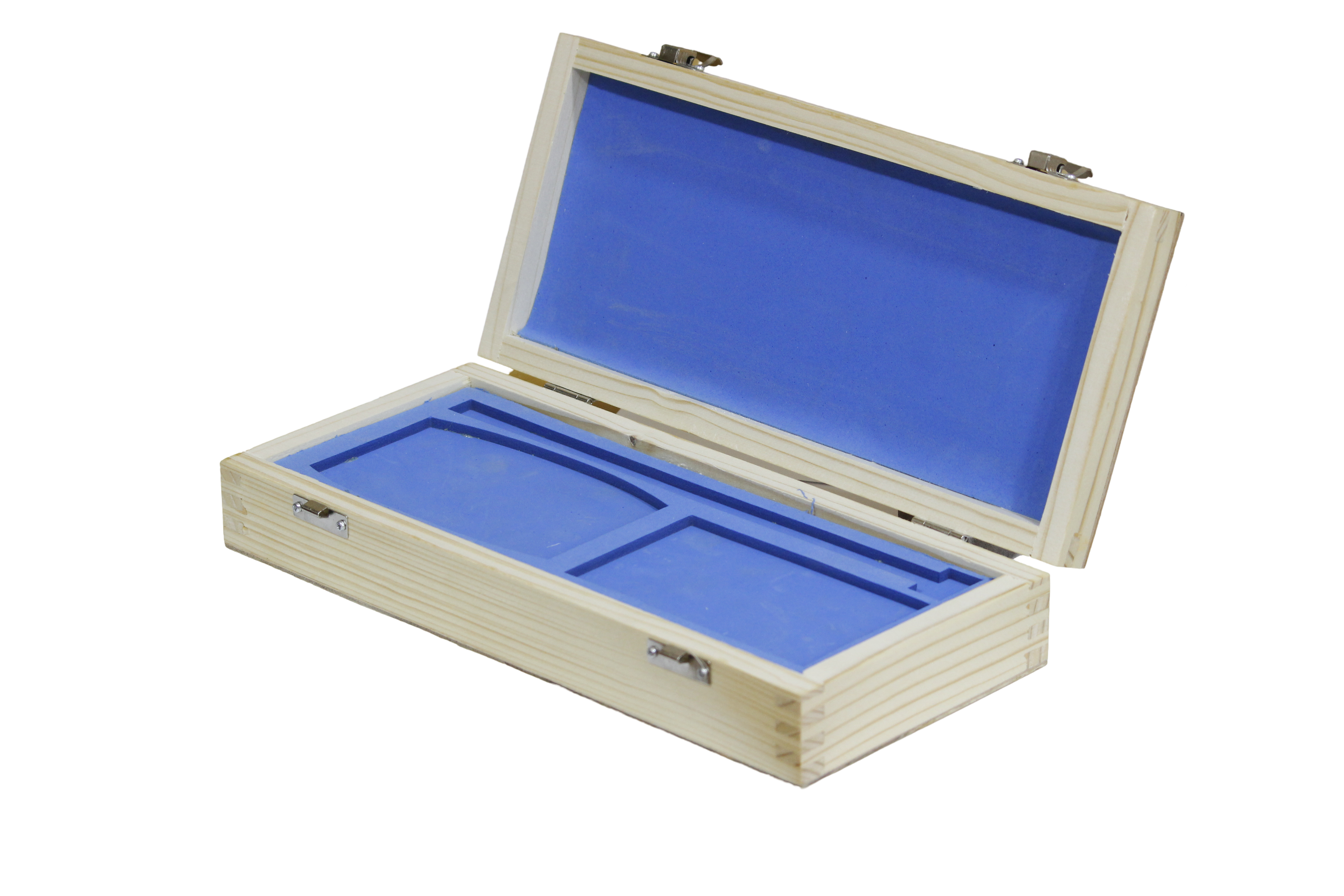

| Packing List | Elecoat gauge with Sensor, Base, Set of Seven Foils, 1 9V Alkaline Battery, Handy Wooden Carry Case. |
|
*Combined model dimensions

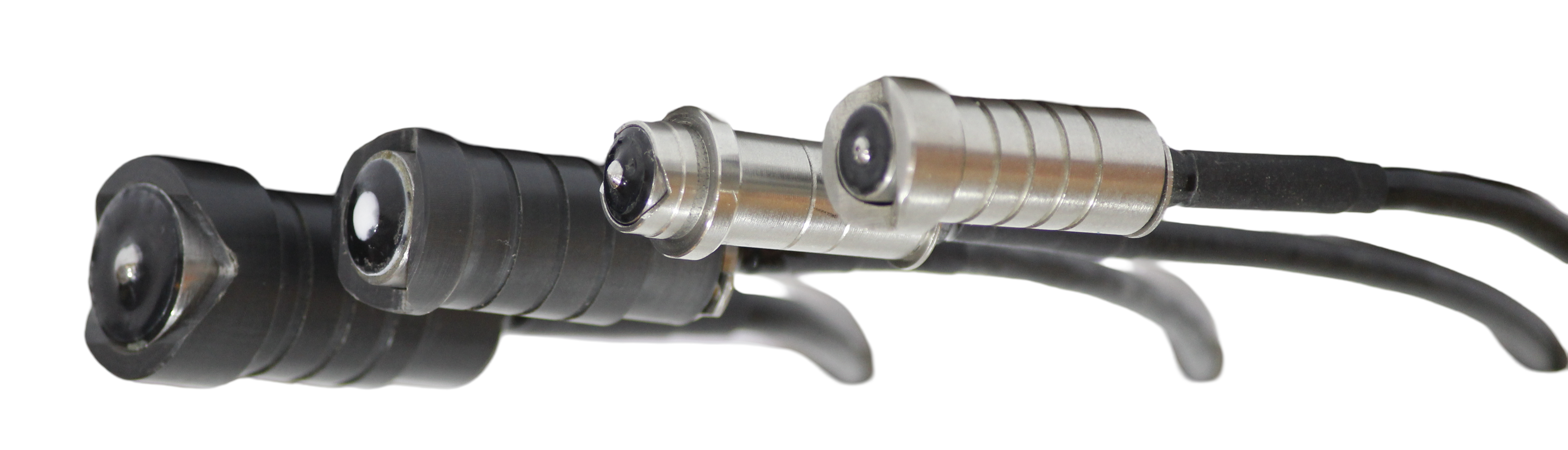

PROBES
- 12mm Ferrous Probe
- Conductive Probe
- Ferrous Probe
- Ruby Tip Probe

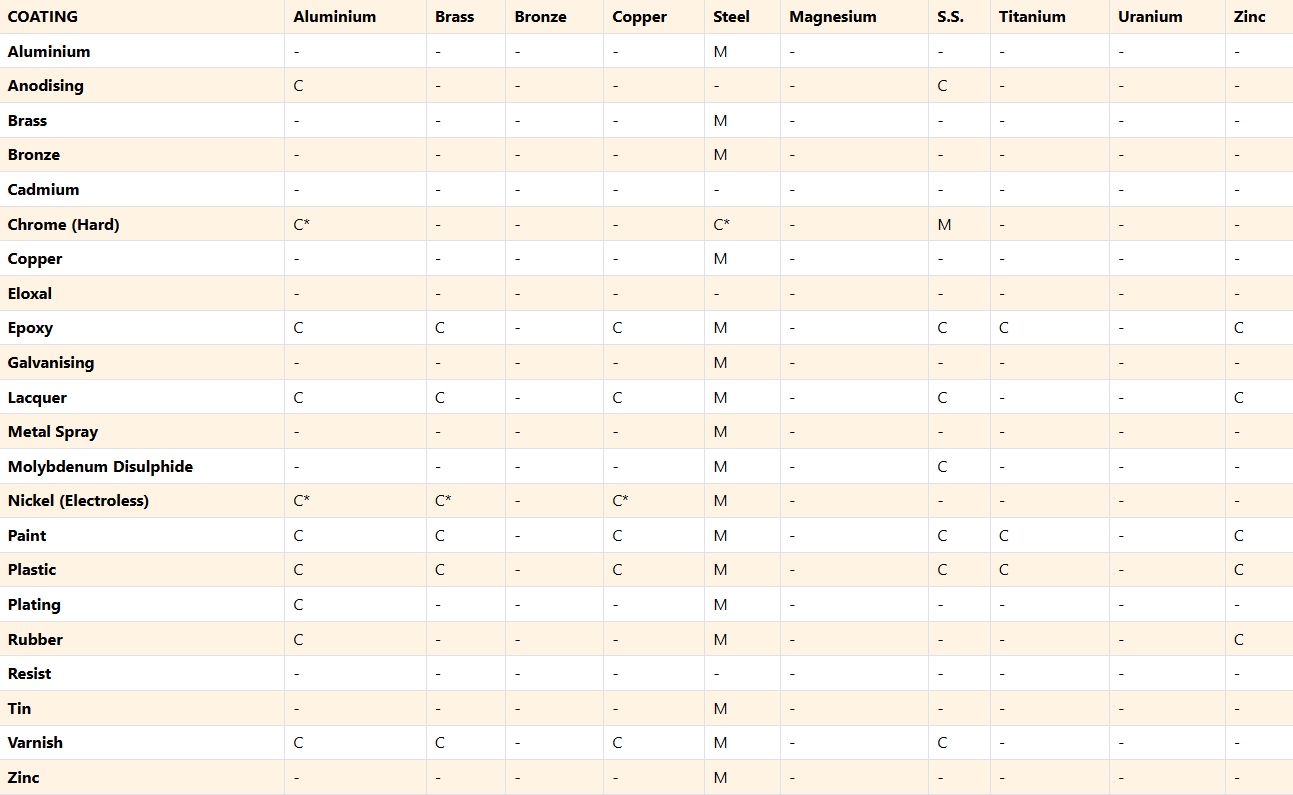

GAUGE SELECTION
| COATING | Aluminium | Brass | Bronze | Copper | Steel | Magnesium | S.S. | Titanium | Uranium | Zinc |
|---|---|---|---|---|---|---|---|---|---|---|
| Aluminium | - | - | - | - | M | - | - | - | - | - |
| Anodising | C | - | - | - | - | - | C | - | - | - |
| Brass | - | - | - | - | M | - | - | - | - | - |
| Bronze | - | - | - | - | M | - | - | - | - | - |
| Cadmium | - | - | - | - | - | - | - | - | - | - |
| Chrome (Hard) | C* | - | - | - | C* | - | M | - | - | - |
| Copper | - | - | - | - | M | - | - | - | - | - |
| Eloxal | - | - | - | - | - | - | - | - | - | - |
| Epoxy | C | C | - | C | M | - | C | C | - | C |
| Galvanising | - | - | - | - | M | - | - | - | - | - |
| Lacquer | C | C | - | C | M | - | C | - | - | C |
| Metal Spray | - | - | - | - | M | - | - | - | - | - |
| Molybdenum Disulphide | - | - | - | - | M | - | C | - | - | - |
| Nickel (Electroless) | C* | C* | - | C* | M | - | - | - | - | - |
| Paint | C | C | - | C | M | - | C | C | - | C |
| Plastic | C | C | - | C | M | - | C | C | - | C |
| Plating | C | - | - | - | M | - | - | - | - | - |
| Rubber | C | - | - | - | M | - | - | - | - | C |
| Resist | - | - | - | - | - | - | - | - | - | - |
| Tin | - | - | - | - | M | - | - | - | - | - |
| Varnish | C | C | - | C | M | - | C | - | - | - |
| Zinc | - | - | - | - | M | - | - | - | - | - |
C: use Elecoat - C Instrument
*: Known sample required for calibration
M: use Elecoat - M Instrument
#: Range is to be decided by user
C: use Elecoat - C Instrument
*: Known sample required for calibration
M: use Elecoat - M Instrument
#: Range is to be decided by user
Accessories
Mechanical Coating Thickness Gauges
Mechanical coating thickness gauges provide cost-effective coating thickness measurement. These gauges are suitable for high-risk environments such as high-temperature or flammable atmospheres, underwater use, or where explosion risks prohibit electronic instruments.

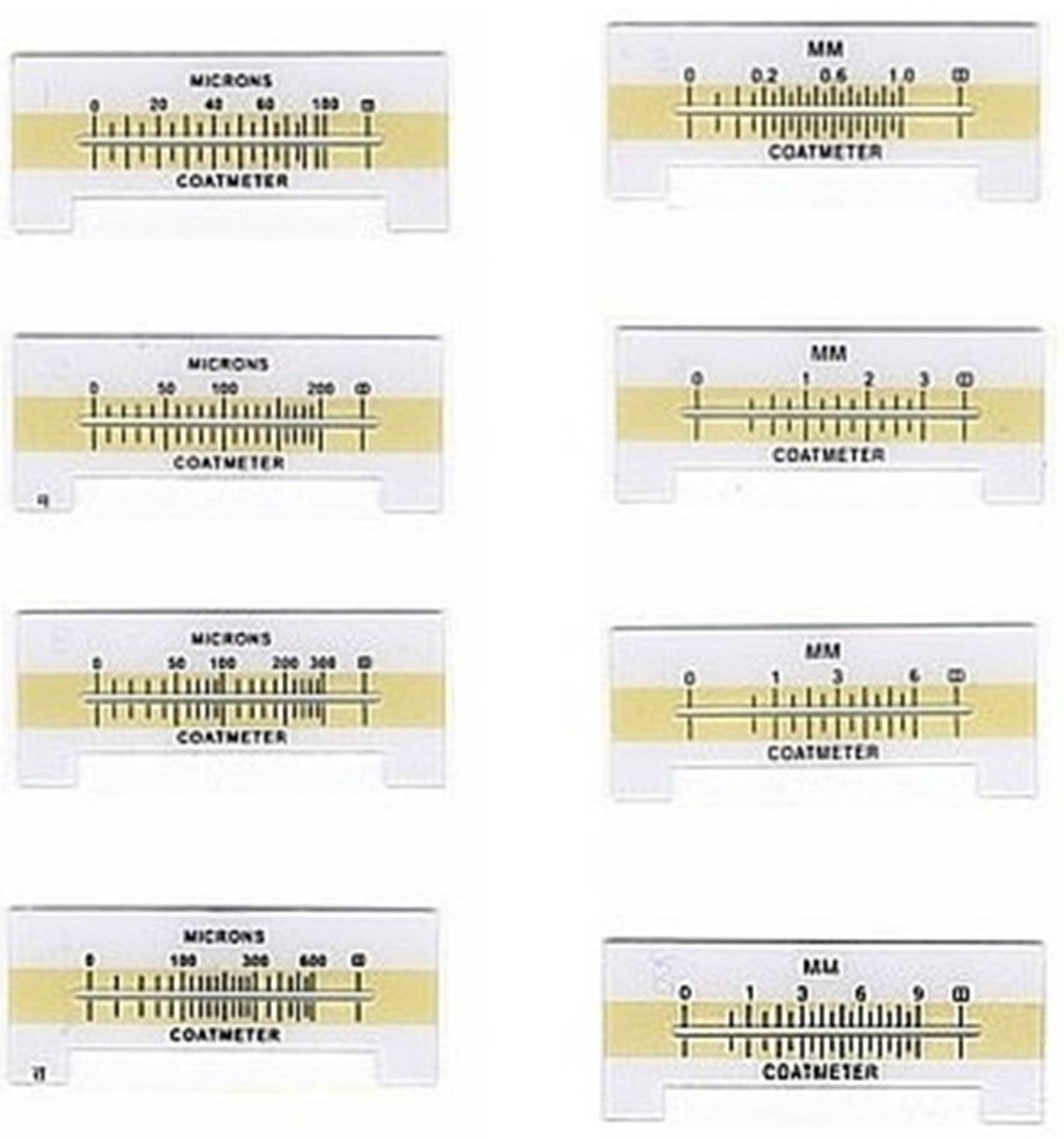

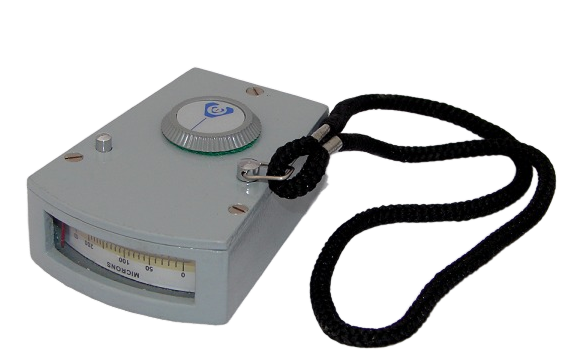

Coat Meter - Dial Type
Features
- - Dial type direct reading.
- - Portable.
- - Reading can be locked.
- - Testing foils of different thicknesses are provided.
- - Can be used in all positions viz. Vertical, horizontal, inclined plane.
- - For precise reading mirror provided below scale.
- - Supplied in an attractive case with an instruction manual.
Confirming to Accuracy as Recommended In
- - SSPC-PA 2-73T
- - ISO 2178-1982 (E)
- - ASTM B 499-87 and ASTM D 1186-87
Measures the thickness of Non-magnetic coating on magnetic base. The coating may be of materials like:
- - Plating: Gold, Copper, Zinc, Tin, Chromium, Hard Chromium, Lead etc.
- - Coating: Paint, Resinous coating.
- - Lining: Resin, Rubber, Fibre Glass.
- - Film: Plastic, Copper foils.
- - Parkerising
- - Metallising
- - Insulation coating
The magnetic base may be of materials like:
- - Iron
- - Nickel
- - Cobalt
- - Magnetic Stainless Steel

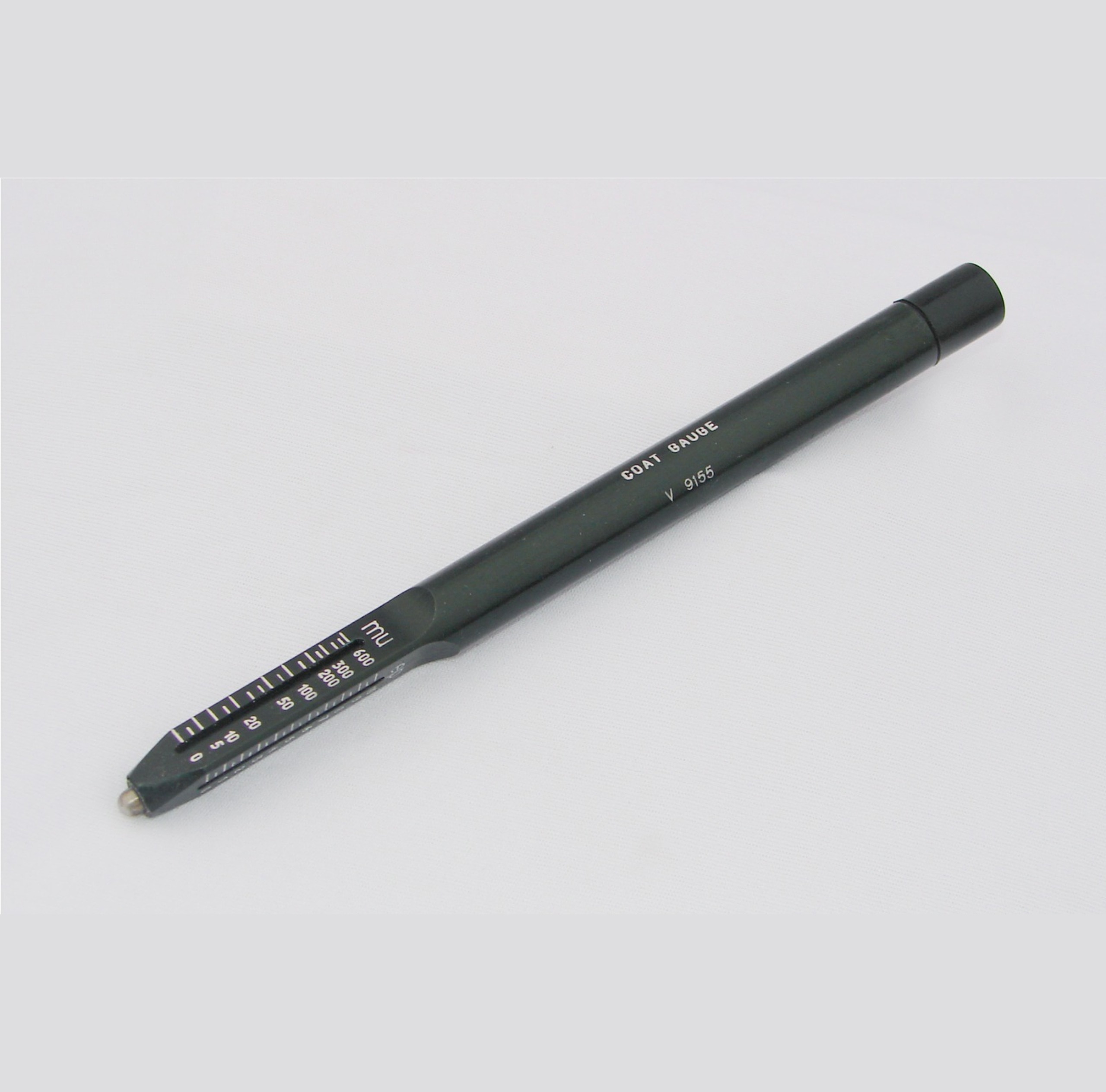

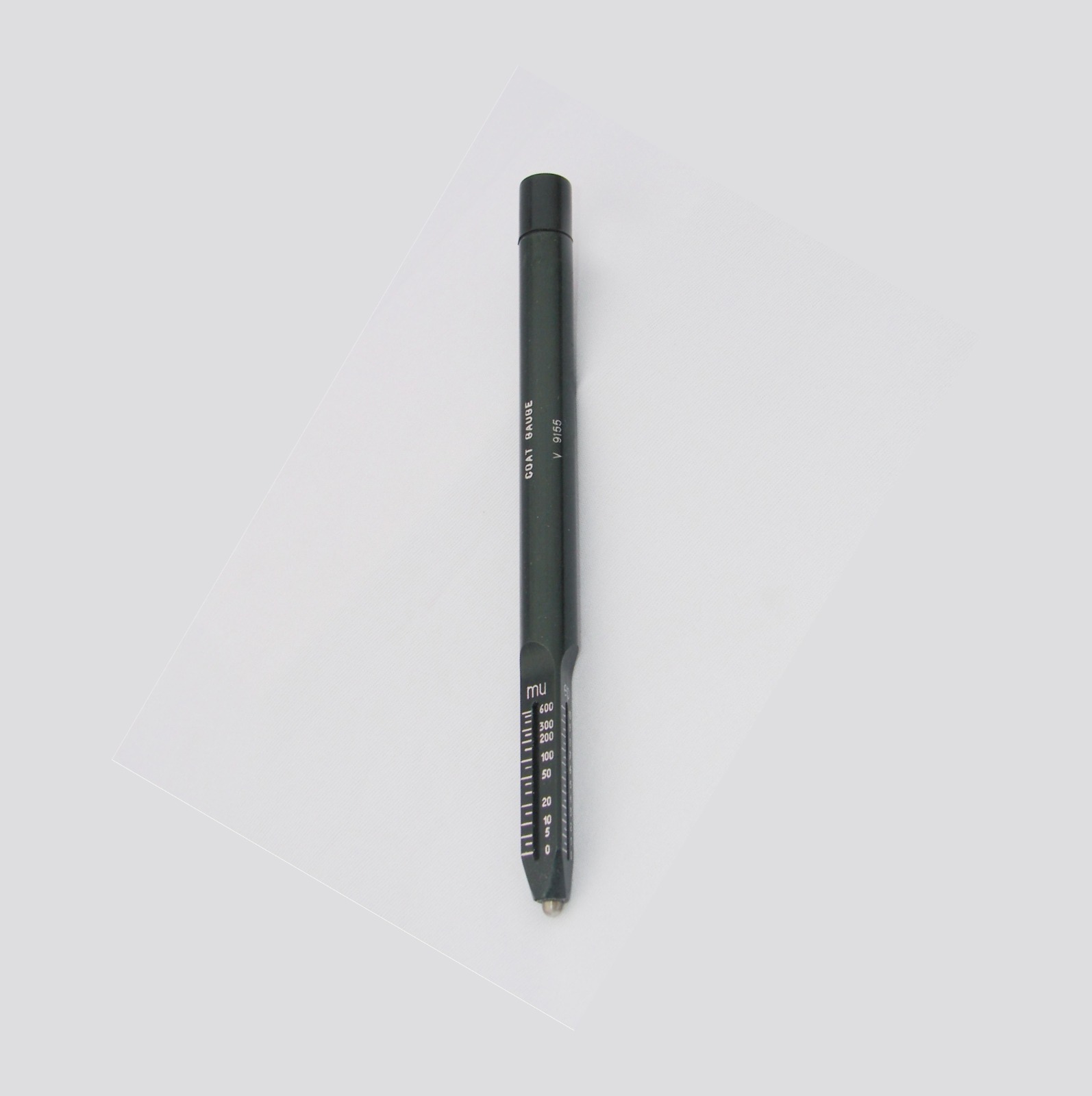

Coatgauge - Pen Type
Features
- - Direct Readings
- - Portable
- - For Vertical Use Only
- - Supplied with Handy Wooden Carry Case
Confirming to Accuracy as Recommended In
- - SSPC-PA 2-73T
- -ISO 2178-1982 (E)
- - ASTM B 499-87 and ASTM D 1186-87
Measures the thickness of Non-magnetic coating on magnetic base.
The coating may be of materials like:
- - Plating: Gold, Copper, Zinc, Tin, Chromium, Hard Chromium, Lead etc.
- - Coating: Paint, Resineous coating
- - Lining: Resin, Rubber, Fibre Glass
- - Film: Plastic, Copper foils
- - Parkerising
- - Metallising
- - Insulation coating
The magnetic base may be of materials like:
- - Iron
- - Nickel
- - Cobalt
- - Magnetic Stainless Steel

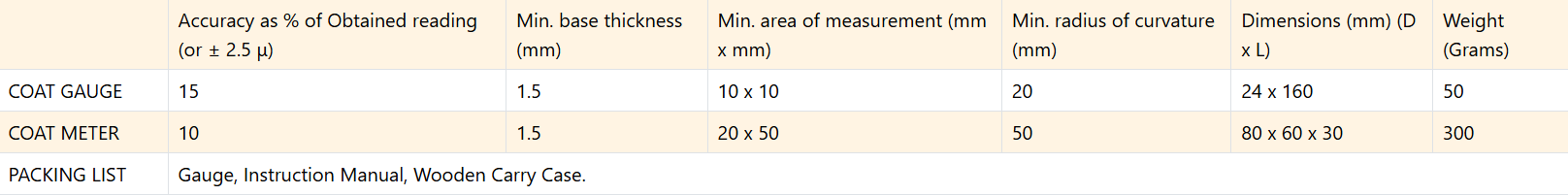

Technical Specifications
| Accuracy as % of Obtained reading (or ± 2.5 μ) | Min. base thickness (mm) | Min. area of measurement (mm x mm) | Min. radius of curvature (mm) | Dimensions (mm) (D x L) | Weight (Grams) | |
|---|---|---|---|---|---|---|
| COAT GAUGE | 15 | 1.5 | 10 x 10 | 20 | 24 x 160 | 50 |
| COAT METER | 10 | 1.5 | 20 x 50 | 50 | 80 x 60 x 30 | 300 |
| PACKING LIST | Gauge, Instruction Manual, Wooden Carry Case. | |||||

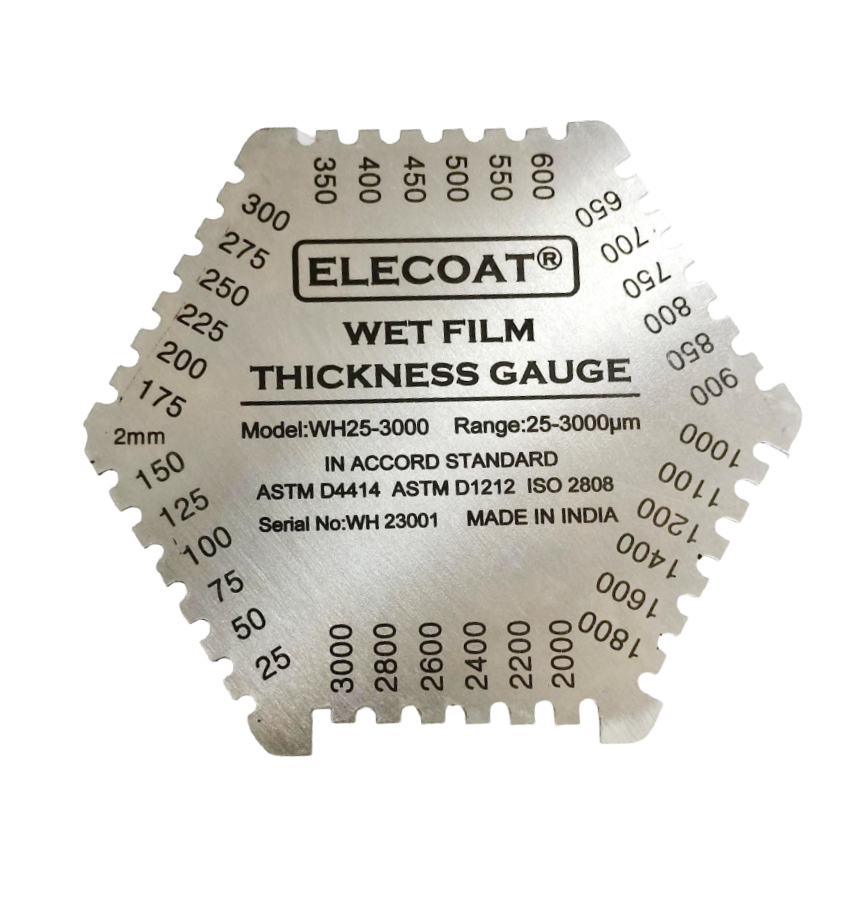

Wet Film Thickness Gauge
Hexagon Type (25–3000 µ)
Introduction
Coatings are often used for barriers over various substrates such as spray polyurethane foam, wood, I-joist and gypsum, steels etc. When applying a coating to any substrate, the thickness of the coating is extremely important and needs to be measured and recorded accurately. Wet film thickness, or WFT, is the measured thickness of any liquid applied coating to surface while it is still wet. Dry film thickness, or DFT is a measurement of the dry and cured material after all liquid has evaporated.
DFT = WFT × % volume solids. For a 50% volume solids material with a WFT of 20 mils, DFT = 20 × 0.50 = 10 mils DFT.
Measuring the WFT of a coating enables the applicator to adjust the spray gun speed, number of sprays passes and to make spray gun adjustments to ensure sufficient coating is applied to cover complete surface and targeted DFT is achieved.

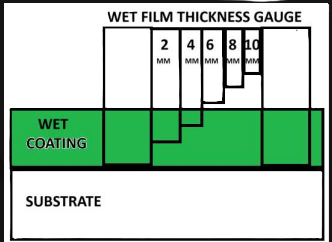

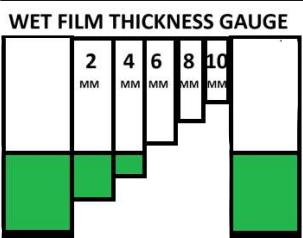

Place the Wet Film Gauge Perpendicular on wet coated substrate,
gauge both end edges must adhere firmly to the substrate.
Remove the gauge and note the Tooth which is wet and adjoining tooth that is dry, the reading is in between these two teeth.
In above E.g. as marked, the 4mm tooth is wet and 6mm tooth is dry. So the wet film thickness is greater than 4mm and less than 6mm.
Distinctive Competence
- Instrument Designed by us are Indigenously Developed and Manufactured in India.
- Instruments are manufactured Using Quality Precision Components which makes them Accurate and Reliable.
- Instrument are Comparable to Finest similar Competitor in the World and works as Direct Import Substitute in India
- Instrument are serviced for at least 10 Yrs after Domestic and International sales.
- Instruments supplied are of Industrial ASTM/ISO Standards aligning them with Companies Standards
- Instrument Innovation is Our Passion and there are VALUABLE CUSTOMERS who makes IT POSSIBLE
